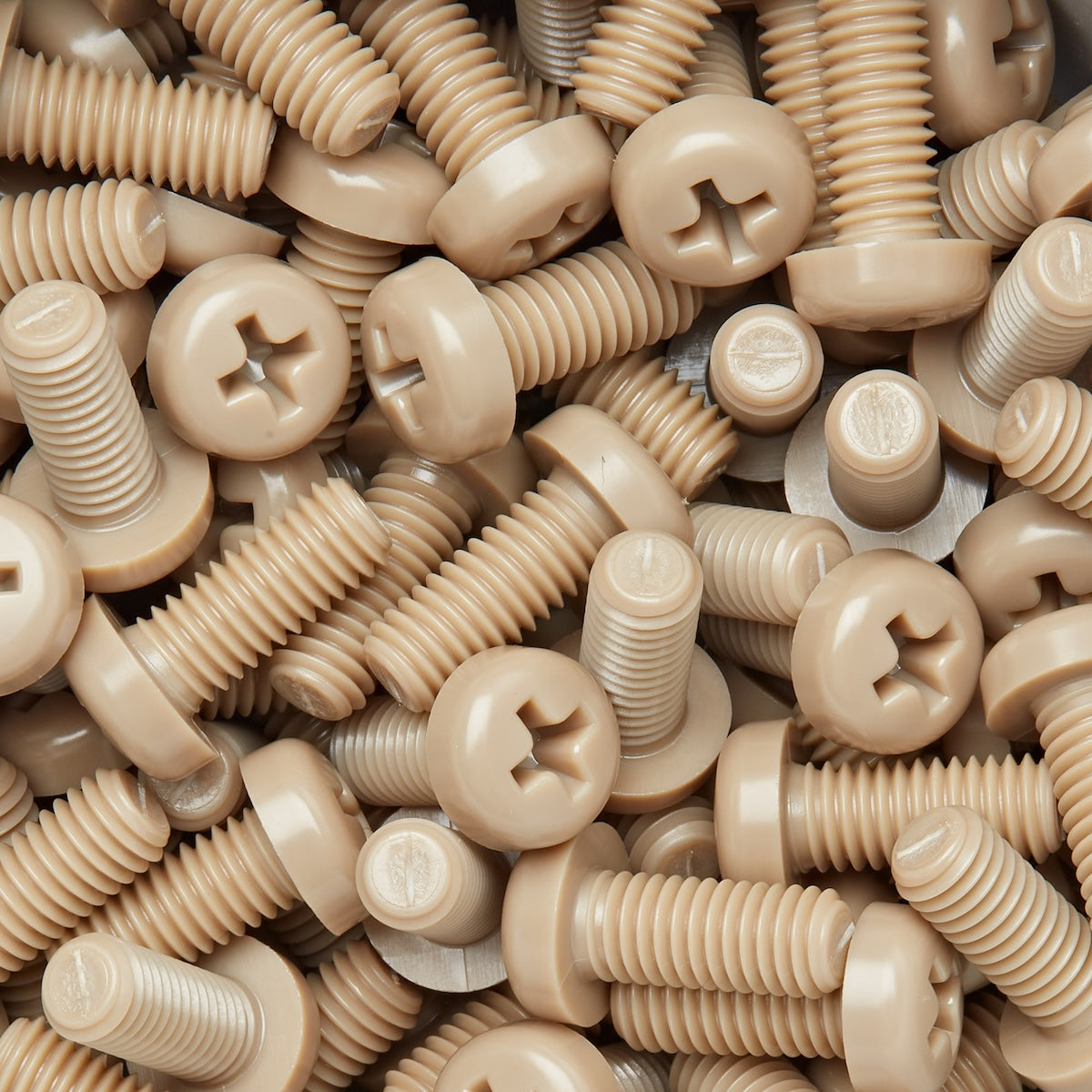

PEEK GF30 Pan Head Inch Screws manufactured to ASME B18.6.3 standards are high-performance engineering fasteners designed for applications requiring enhanced strength, rigidity, and resistance to extreme environments. Manufactured from 30% glass fiber reinforced Polyether Ether Ketone (PEEK GF30), these screws provide increased stiffness and load-bearing capability compared with unfilled PEEK while maintaining excellent chemical and thermal resistance.

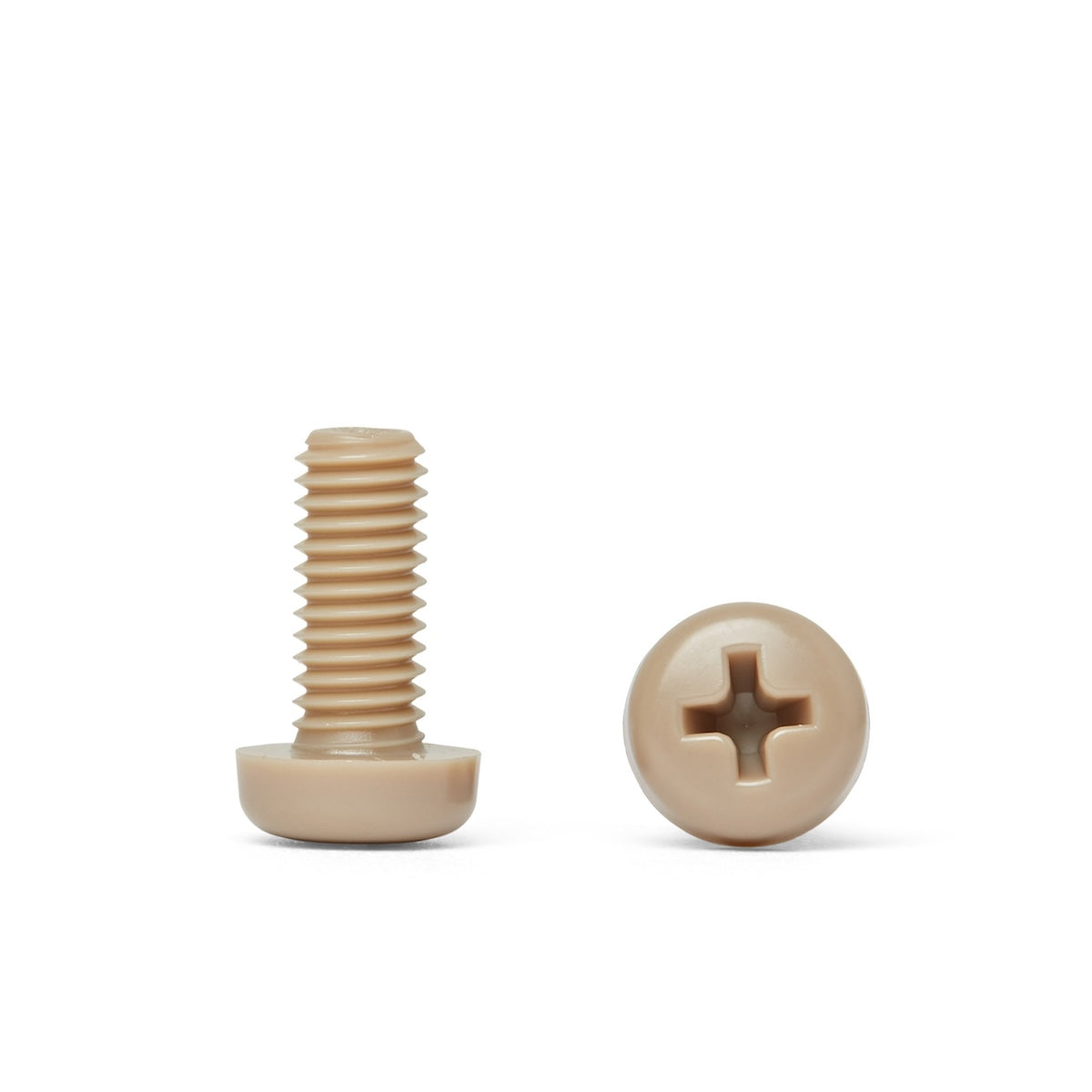

The pan head design provides a broad bearing surface for improved load distribution and a clean finished appearance without requiring a countersunk hole, while the glass fiber reinforcement enhances stiffness and load-bearing capability for demanding applications. Manufactured in accordance with ASME B18.6.3, these screws ensure dimensional consistency and compatibility with corresponding inch-threaded components. The cross recessed drive allows convenient installation using standard Phillips screwdrivers, making them suitable for precision and industrial assemblies alike.
Glass fiber reinforcement significantly improves tensile strength, creep resistance, and dimensional stability, making PEEK GF30 screws particularly suitable for structural applications exposed to sustained loads and elevated temperatures. The material also exhibits outstanding resistance to chemicals, steam, hydrolysis, wear, and radiation, ensuring long-term reliability in demanding operating conditions.
Key Features
Available in a range of inch thread sizes and lengths.
Material: PEEK GF30 (30% Glass Fibre Reinforced Polyether Ether Ketone)
Continuous use temperature: 500°F
Flammability: UL94 V-0
Tensile Strength: 168MPa
