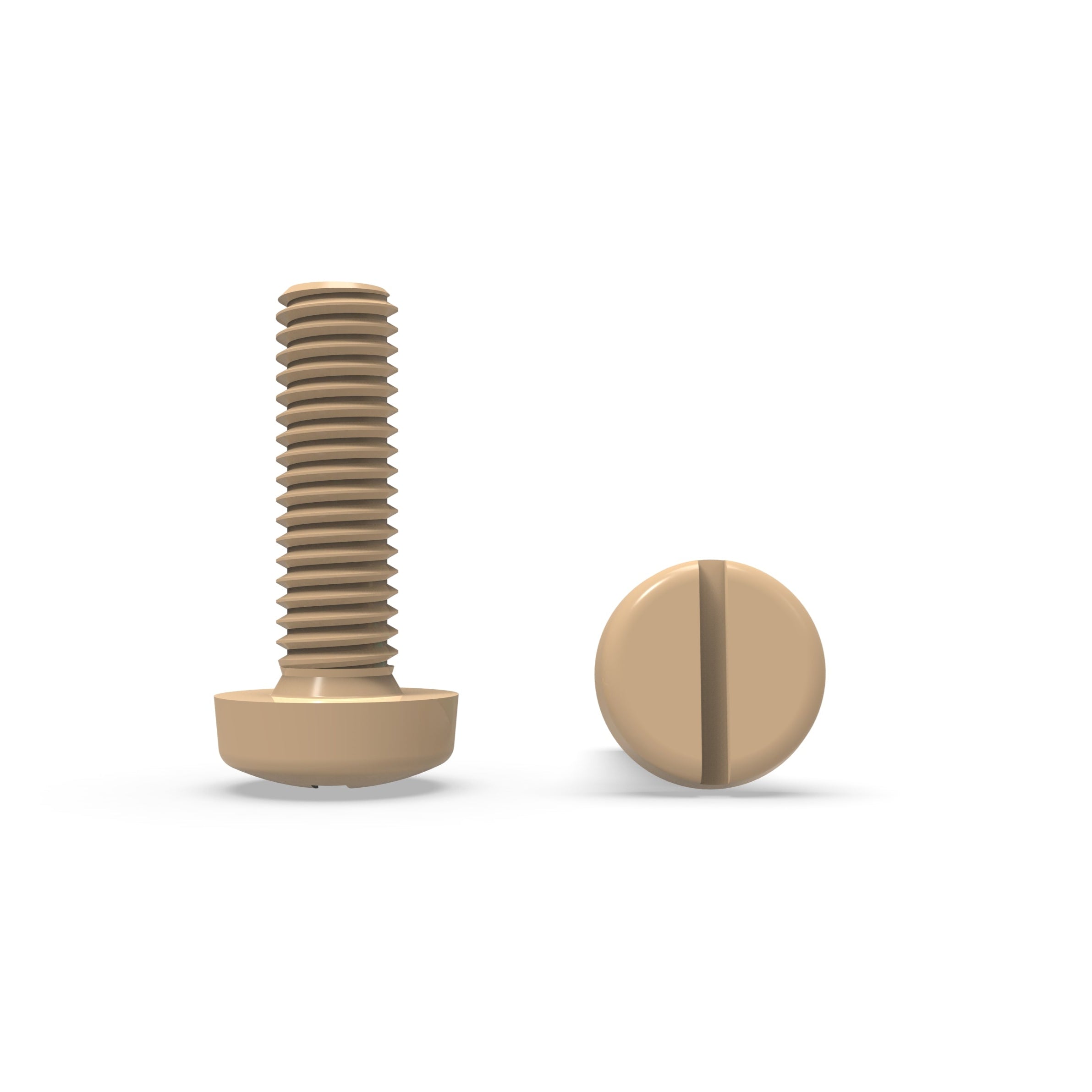

PEEK Slotted Pan Head Inch Screws manufactured to ASME B18.6.3 standards are premium engineering fasteners designed for applications requiring exceptional mechanical strength, chemical resistance, and high-temperature performance. Manufactured from Polyether Ether Ketone (PEEK), these screws provide a lightweight, corrosion-resistant alternative to metal fasteners while delivering outstanding reliability in demanding operating environments.
The pan head design provides a broad bearing surface for improved load distribution and a clean finished appearance without requiring a countersunk hole. The slotted drive allows installation using standard flat-blade screwdrivers, making these fasteners suitable for applications where simple assembly and maintenance are preferred. Compliance with ASME B18.6.3 ensures dimensional consistency and compatibility with corresponding inch-threaded components.
PEEK exhibits outstanding resistance to aggressive chemicals, hydrolysis, steam, wear, and radiation while retaining its mechanical properties across a broad temperature range. Its low moisture absorption and exceptional dimensional stability make these screws ideal for aerospace systems, semiconductor equipment, medical devices, electronics, and chemical processing applications where long-term performance is critical.
Key Features
Available in a range of inch thread sizes and lengths.
Material: PEEK 450G (Polyether Ether Ketone)
Maximum Temperature: 500°F
Flammability: UL94 V-0
Tensile Strength: 97MPa
Return components within 90 days for a full refund. Please see our returns terms and conditions for further information.
| Imperial PEEK Slotted Pan Screw Dimension Table | ||||
|---|---|---|---|---|
| Thread Size | Thread Series | Head Diameter | Head Height | Slot Depth |
| 4-40 | UNC | 0.219 | 0.068 | 0.040 |
| 6-32 | UNC | 0.270 | 0.082 | 0.050 |
| 8-32 | UNC | 0.322 | 0.096 | 0.058 |
| 10-32 | UNF | 0.373 | 0.110 | 0.068 |
| Properties | Applications |
|---|---|
|
|
|
