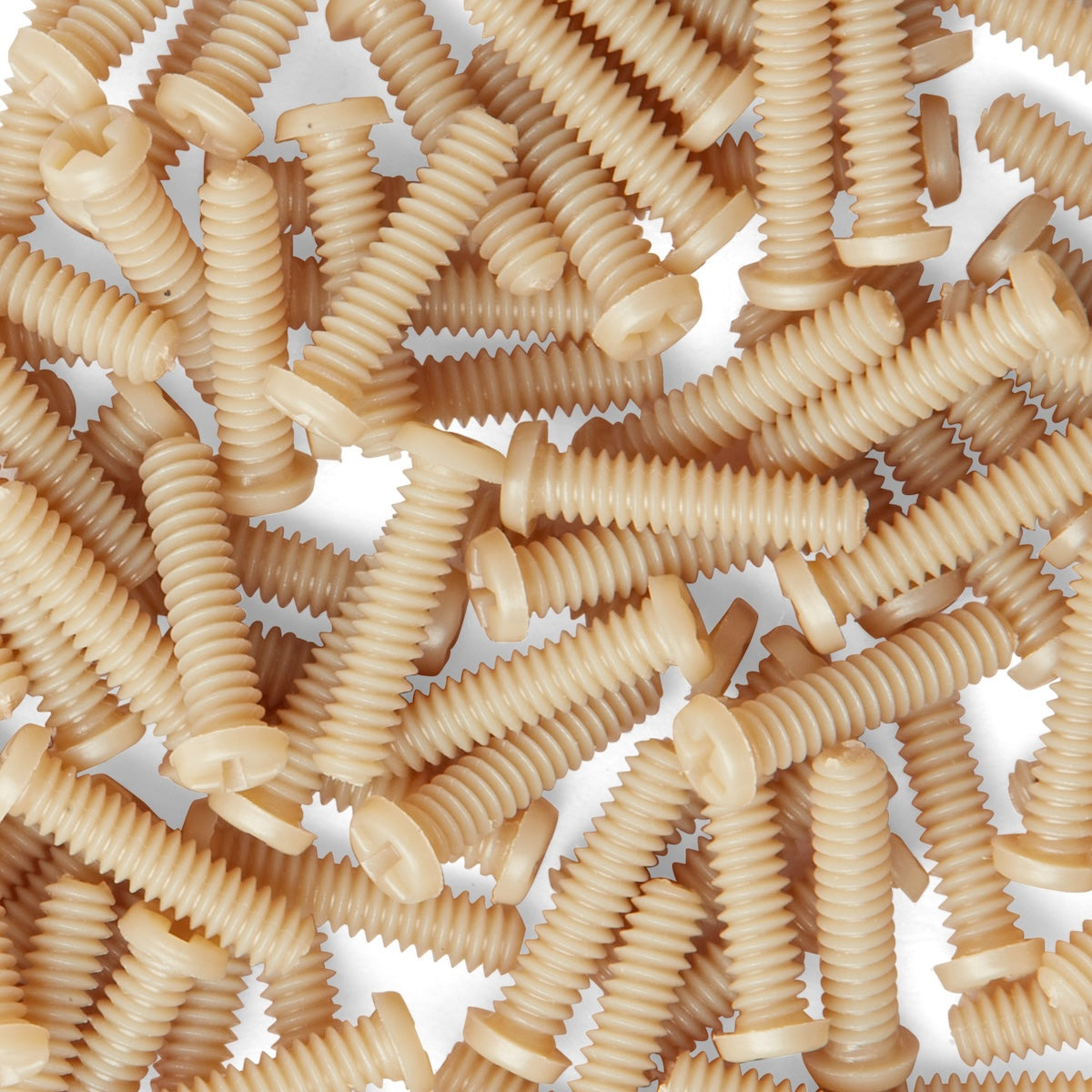

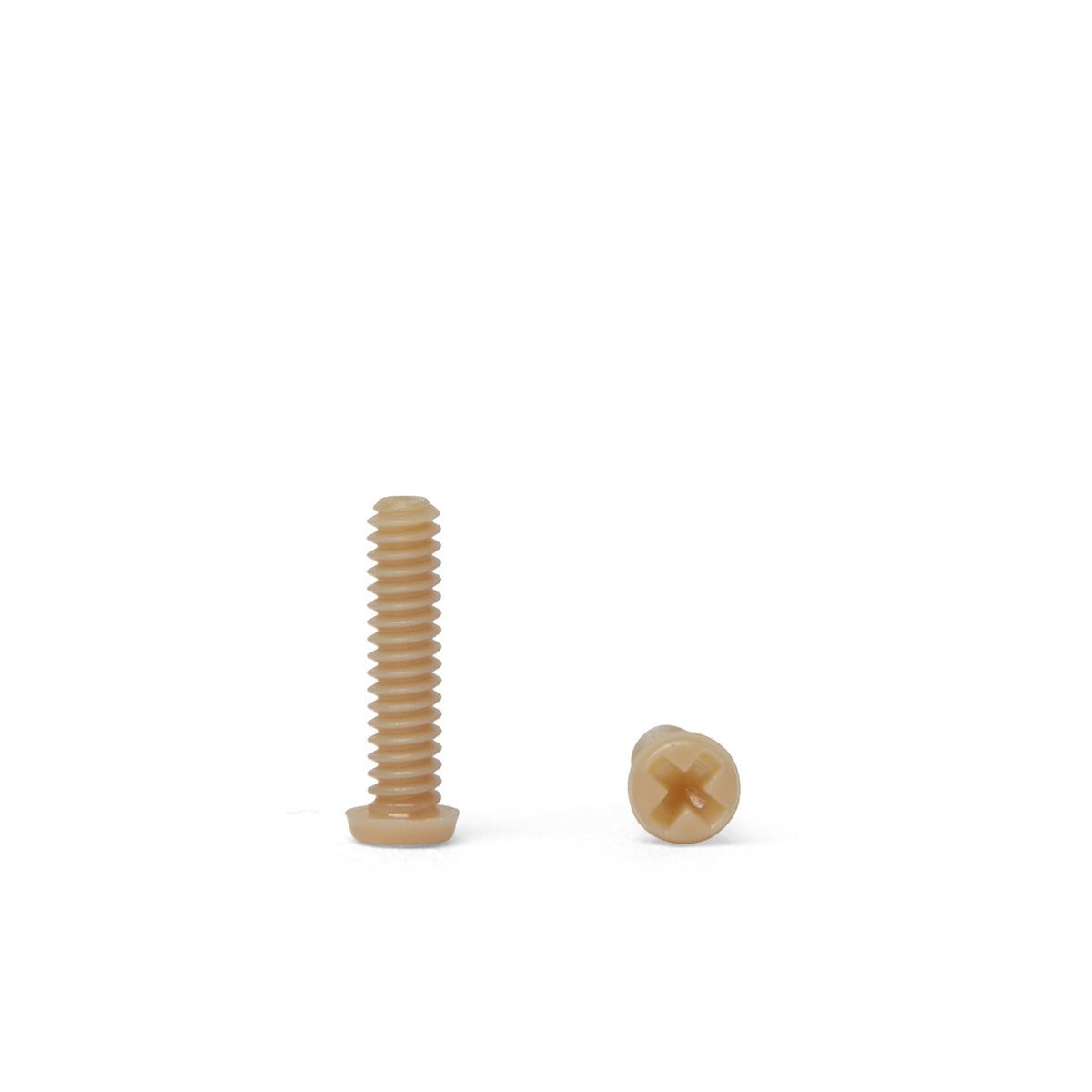

PEEK GF30 Micro Cross Recessed Pan Head Metric Screws manufactured to ISO 7045 standards are miniature high-performance fasteners engineered for precision assemblies requiring enhanced strength, rigidity, and thermal stability. Manufactured from 30% glass fiber reinforced Polyether Ether Ketone (PEEK GF30), these screws provide increased stiffness and load-bearing capability compared with unfilled PEEK while maintaining excellent chemical and temperature resistance.
The micro pan head profile offers a compact fastening solution with an enlarged bearing surface for even load distribution in miniature assemblies. In miniature fasteners, reinforcement is often beneficial because the reduced screw dimensions can limit load capacity and increase susceptibility to deformation under tightening torque or sustained mechanical stress. The cross recessed Phillips drive enables precise installation using standard micro screwdrivers, while ISO 7045 compliance ensures dimensional consistency and compatibility with corresponding metric threaded components.
The addition of glass fiber reinforcement significantly improves mechanical strength, creep resistance, and dimensional stability, making PEEK GF30 micro screws particularly suitable for precision engineering applications exposed to mechanical loads and elevated temperatures. The material also offers excellent resistance to chemicals, steam, hydrolysis, and wear, ensuring long-term reliability in demanding environments.
Key Features
Available in a range of micro metric thread sizes and lengths.
Material: PEEK GF30 (30% Glass Fibre Reinforced Polyether Ether Ketone)
Continuous use temperature: 500°F
Flammability: UL94 V-0
Tensile Strength: 168MPa
Return components within 90 days for a full refund. Please see our returns terms and conditions for further information.
Properties and applications
Every project is unique — so why settle for standard parts?
Our custom manufacturing service delivers precision-engineered components tailored to your exact requirements. With low minimum order quantities and scalable production capacity, we support everything from prototypes to high-volume manufacturing.
With extensive material knowledge, consistent product quality, and high volume capability, we support manufacturers with polymer components they can rely on.
Get in touch to discuss your project:
