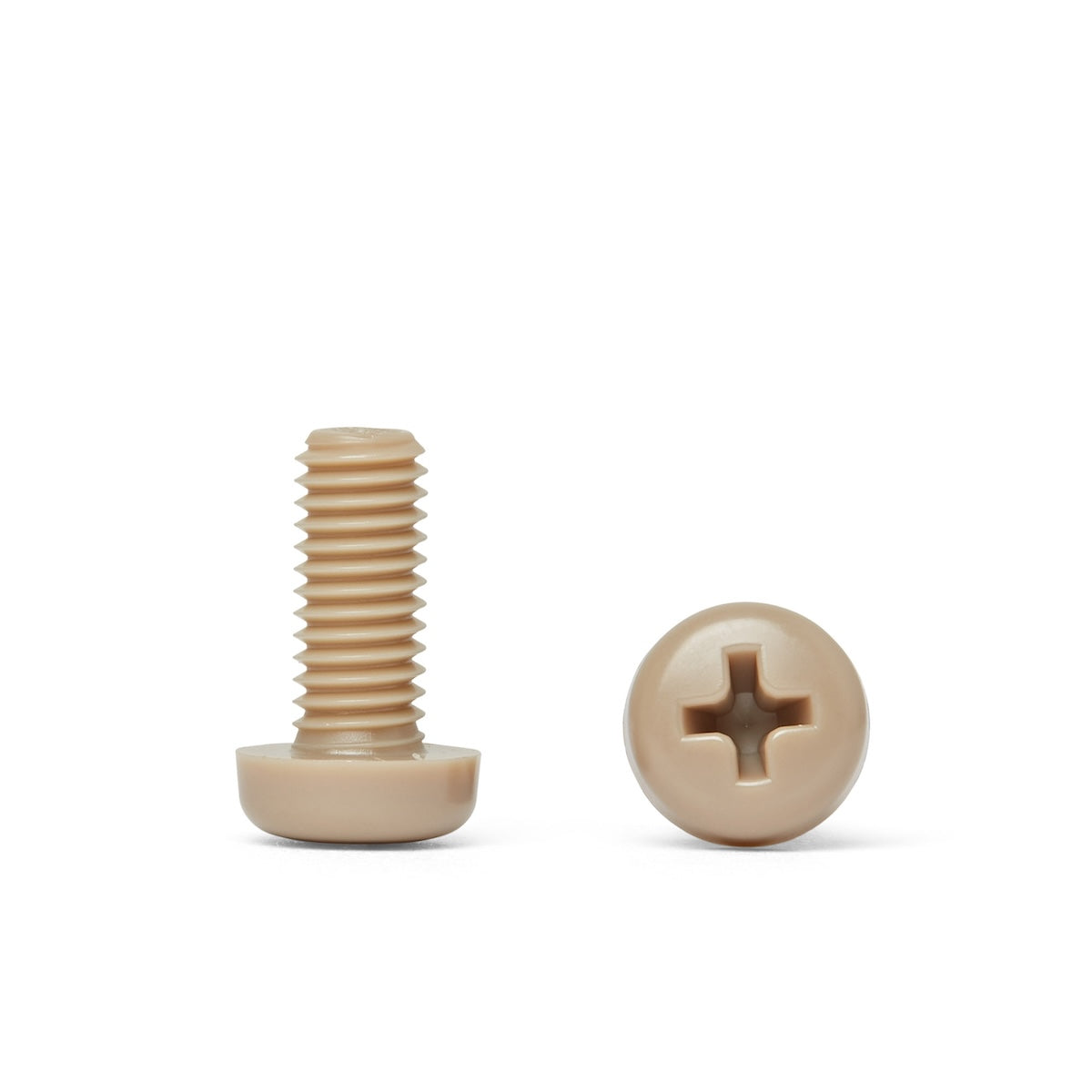

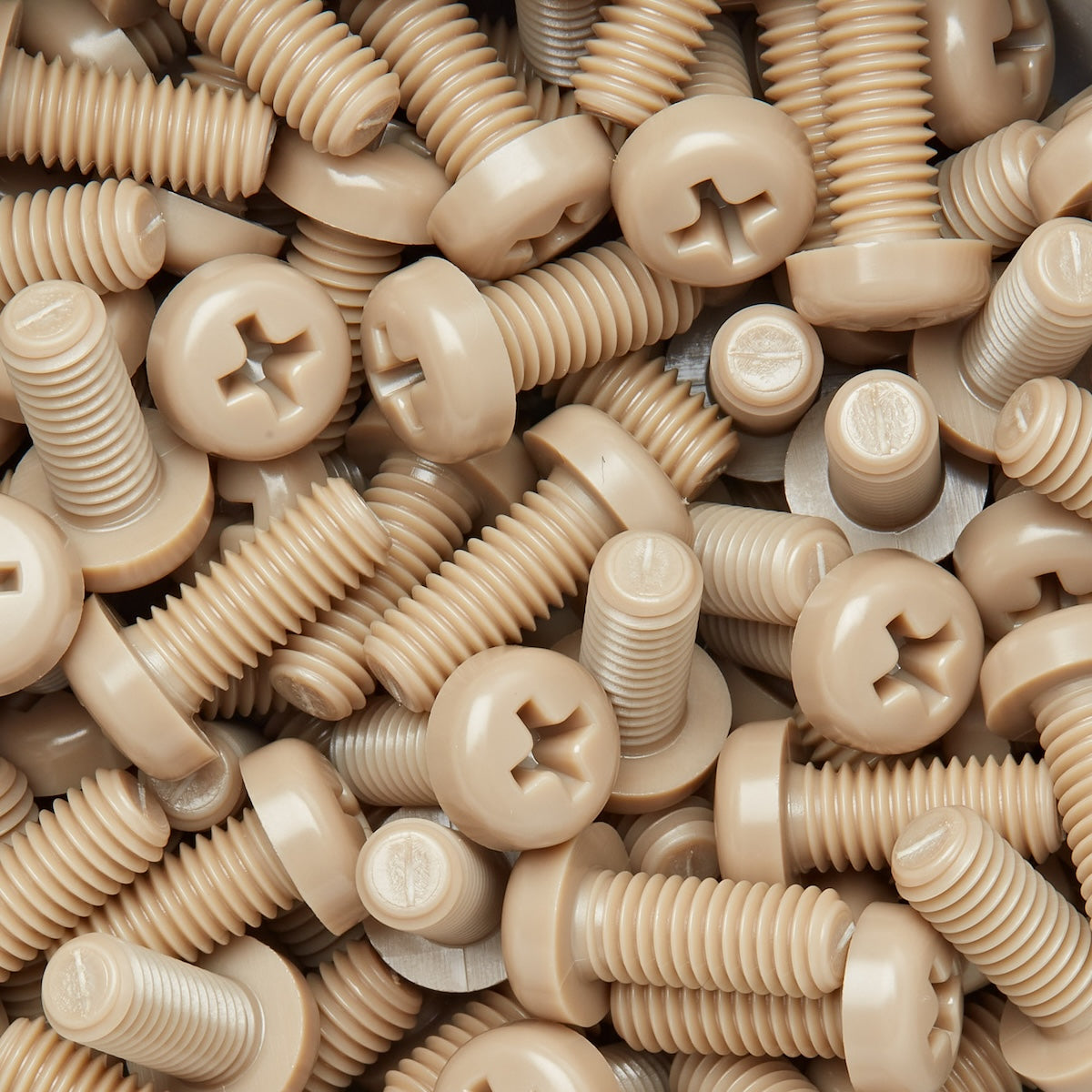

PEEK Pan Head Metric Screws manufactured to ISO 7045 standards are premium engineering fasteners designed for applications requiring exceptional mechanical strength, chemical resistance, and high-temperature performance. Manufactured from Polyether Ether Ketone (PEEK), these screws provide a lightweight, corrosion-resistant alternative to metal fasteners while delivering outstanding reliability in demanding operating environments.
The rounded pan head profile offers a low-profile fastening solution with a wide contact area that helps distribute clamping forces evenly across the assembly. A Phillips cross recess allows for efficient tightening and removal using commonly available drivers. Manufactured in accordance with ISO 7045, these screws provide standardized dimensions for dependable fit and interchangeability with compatible metric hardware.
PEEK exhibits outstanding resistance to aggressive chemicals, hydrolysis, steam, wear, and radiation while retaining its mechanical properties across a broad temperature range. Its low moisture absorption and exceptional dimensional stability make these screws ideal for aerospace systems, semiconductor equipment, medical devices, electronics, and chemical processing applications where long-term performance is critical.
Key Features

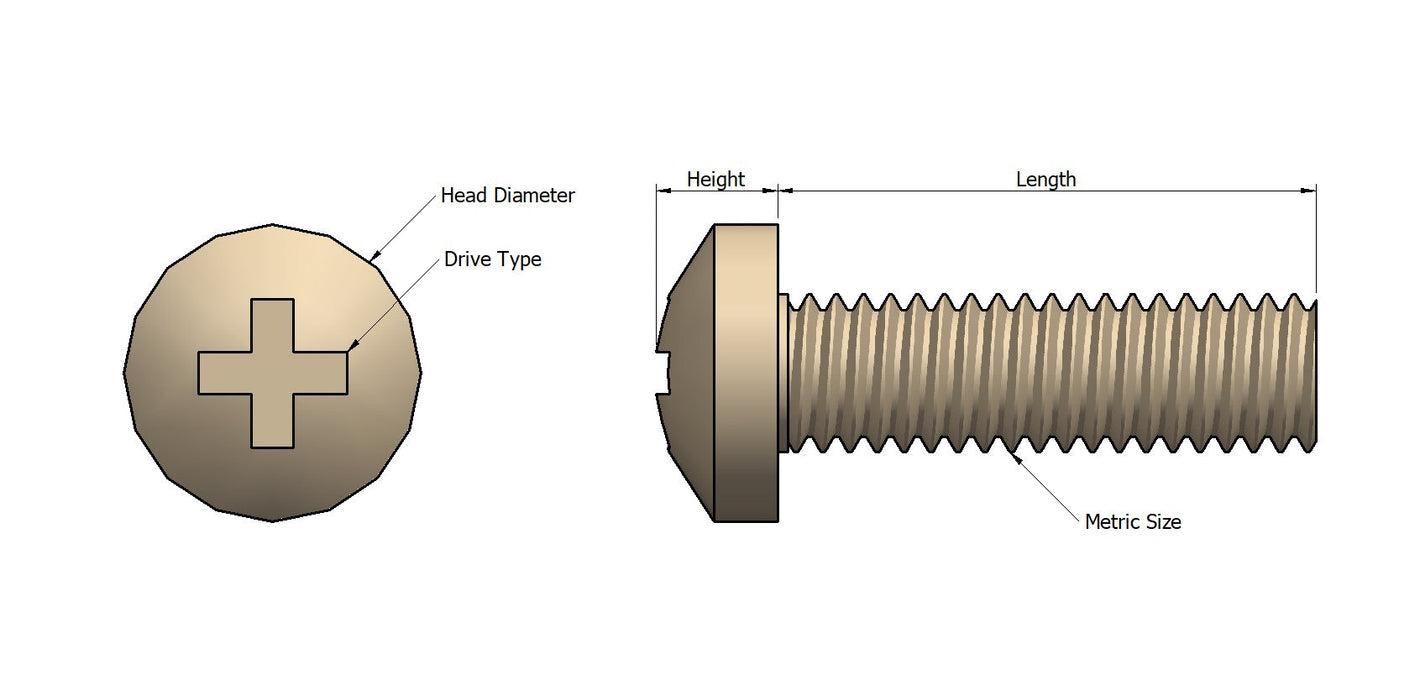

Available in a range of metric thread sizes and lengths.
Material: PEEK 450G (Polyether Ether Ketone)
Maximum Temperature: 500°F
Flammability: UL94 V-0
Tensile Strength: 97MPa
Return components within 90 days for a full refund. Please see our returns terms and conditions for further information.

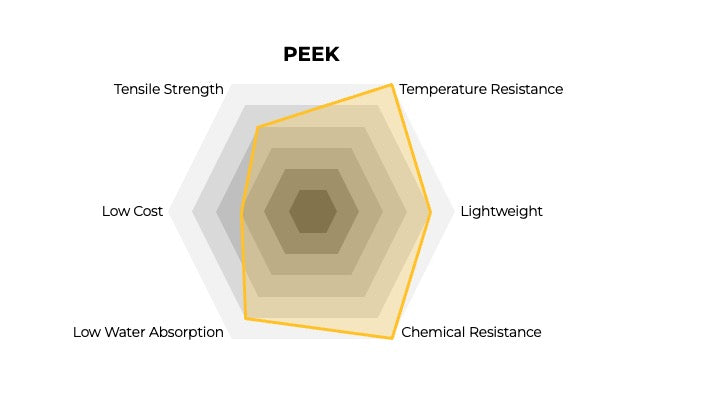

Properties and applications
Every project is unique — so why settle for standard parts?
Our custom manufacturing service delivers precision-engineered components tailored to your exact requirements. With low minimum order quantities and scalable production capacity, we support everything from prototypes to high-volume manufacturing.
With extensive material knowledge, consistent product quality, and high volume capability, we support manufacturers with polymer components they can rely on.
Get in touch to discuss your project:
