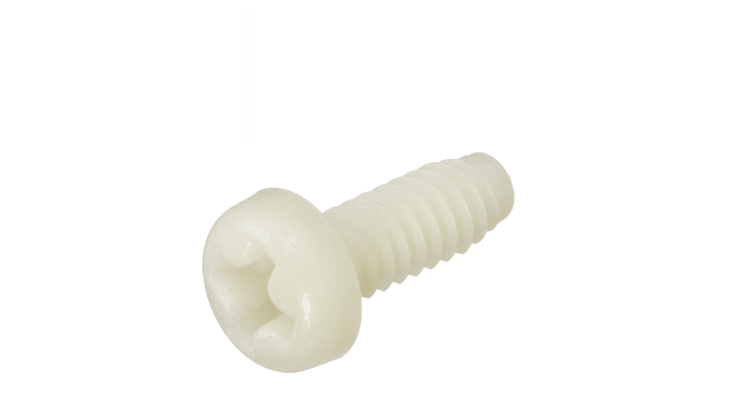

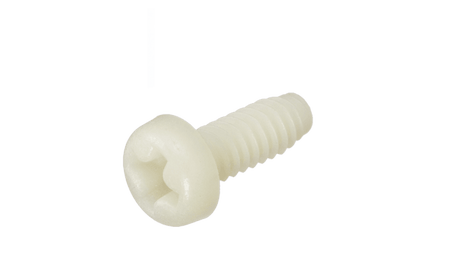

RENY Tapping Metric Screws conforming to ISO 7049 are high-strength engineering plastic fasteners designed for direct installation into thermoplastics and other suitable materials without the need for pre-threaded inserts. Manufactured from glass fiber reinforced MXD6 polyamide (RENY), these screws provide exceptional mechanical strength, rigidity, and dimensional stability while remaining lightweight and corrosion resistant.
Featuring a tapping thread profile and pan head design in accordance with ISO 7049, RENY screws offer excellent thread-forming capability and secure fastening performance. Their superior strength-to-weight ratio and low moisture absorption make them an ideal choice for demanding applications where standard nylon fasteners may not provide sufficient mechanical performance.
Key Features
Metric sizes available.
Material: RENY (50% Glass Fibre Reinforced Nylon MXD6)
Continuous use temperature: 221°F
Flammability: UL94 HB
Tensile Strength: 285MPa
Return components within 90 days for a full refund. Please see our returns terms and conditions for further information.
| RENY Tapping Screw Dimension Table | |||
|---|---|---|---|
| Metric Size/Nominal Thread Diameter | Head Diameter (mm) | Head Height (mm) | Recess Depth |
| M3 | 5.5 | 2 | 1.4 |
| M4 | 7 | 2.6 | 1.63 |
| Properties | Applications |
|---|---|
|
|
|
