Injection molding is a manufacturing process in which molten polymer is injected under pressure into a precision-made mold, where it cools and solidifies into the required shape. It is ideal for producing complex, consistent components in medium-to-high volumes, offering fast production cycles, repeatable quality, and low per-part cost once the mold tooling is created.
We review your component specifications and CAD drawings, as well as your required volume to see if injection molding would be suitable.
We help you choose the right material for your performance and cost goals.

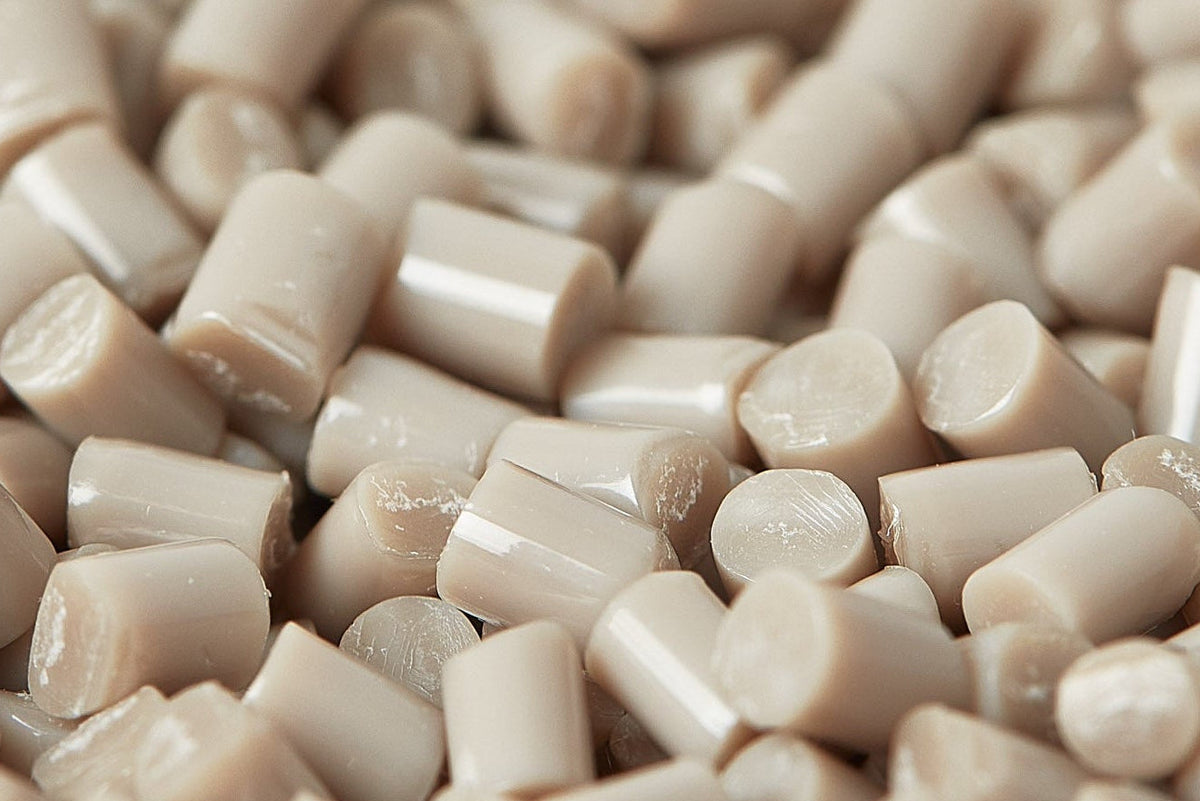

Polymer granules are heated until molten, then pressed into a precisely engineered mold. The polymer cools and solidifies into the required shape, after which the mold opens and the finished component is ejected.
Your component(s) are then fully inspected and sent to you with a CoC.
Injection molding is usually chosen for medium-to-high production volumes where consistent quality, fast manufacturing cycles, and a low cost per part are important. It is particularly suitable for complex components that can be produced repeatedly from the same design, provided the volume justifies the initial mould-tooling investment.
Common injection-moulded components include:
Injection molding is preferred when large quantities of identical polymer components are required quickly and consistently. Although mold tooling involves a higher initial investment, the process delivers short production cycles and a very low cost per part at scale.
Compared with CNC machining, injection moulding creates complex shapes with less material waste and can incorporate ribs, bosses, clips, threads and textured surfaces into a single component. Compared with compression moulding, it generally provides faster cycles, tighter dimensional control and greater flexibility for thin walls and intricate details.
Injection molding is an ideal manufacturing method for high volumes of complex parts; however, it is not suitable for all customized pieces. Producing a mold for components is costly and must be justified by the volume of pieces being produced. Furthermore, if the product's design changes, then the mold will need to be altered or replaced. This leads to high minimum production volumes.
When a component is suited to injection molding, manufacturers must be wary of potential molding defects caused by gate marks, sink marks, and flash.

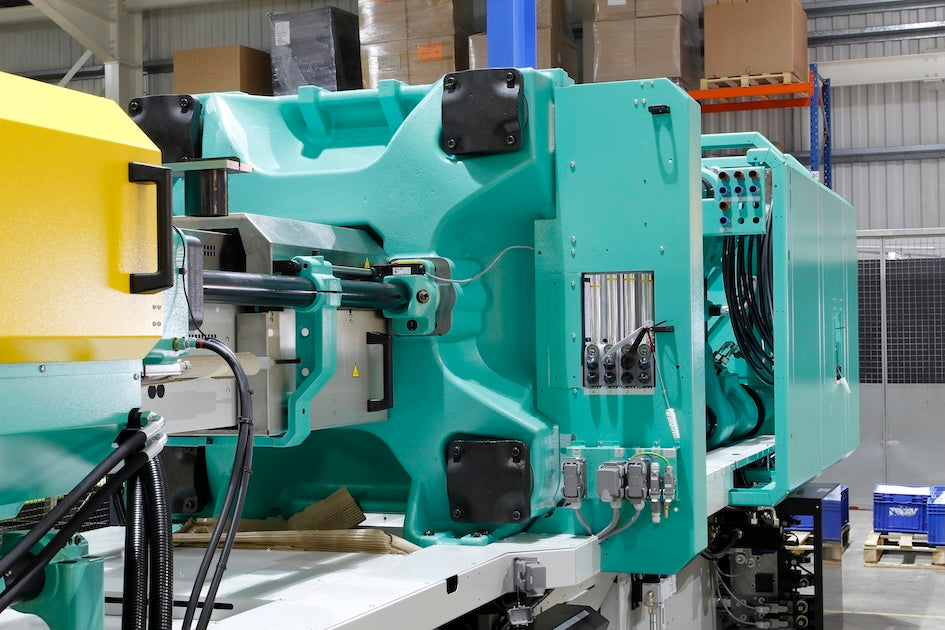

Injection molding machines vary depending on their clamping force to keep their mold closed. The pressure produced is measured in tons and commonly split into these size categories:
Small Machines (5 to 200 tons)
Medium Machines (200 to 500 tons)
Large Machines (500 to 2,000 tons)
Extra Large/ Giga-Molding Machines (2,000 to 12,000 tons)
Suitability depends on a component's material
Polypropylene (PP), Polyethylene (PE), Polyacetal (POM), Polyamide (PA), Polycarbonate (PC)
These are widely available as injection-molding grades and generally offer good flow, reasonable processing temperatures, and established molding parameters. PA must be dried properly, while POM requires careful temperature control to prevent degradation.
Polyphenylene Sulphide (PPS), Polyvinylidene Fluoride (PVDF), Polyvinyl Chloride (PVC), RENY MXD6, Polyetherimide (PEI)
These materials require tighter control of drying, melt temperature, mold temperature, and cooling. PPS and PEI need high processing temperatures, PVC is heat-sensitive, and glass-reinforced RENY grades can be abrasive to the moulding equipment. PPS and PEI are nevertheless established injection-moulding materials.
Polyether Ether Ketone (PEEK), PEEK GF30, Perfluoroalkoxy (PFA), RENY MXD6
These require specialist equipment, high processing temperatures, or exceptional process control. Glass-filled grades also have reduced flow and cause considerable screw, barrel, and mold wear. PEEK melts at approximately 645.8°F, while PFA is melt-processable but normally processed at very high temperatures.
Ceramic Alumina (Al₂O₃), Ceramic Zirconia (ZrO₂), Polytetrafluoroethylene (PTFE)
PTFE has an exceptionally high melt viscosity and does not flow through a conventional injection-molding machine; it is normally compression molded and sintered. Alumina and zirconia are not polymers. They can be formed using ceramic injection molding, but this requires ceramic powder mixed with a binder, followed by debinding and high-temperature sintering—it is a different process from conventional plastic injection molding.
