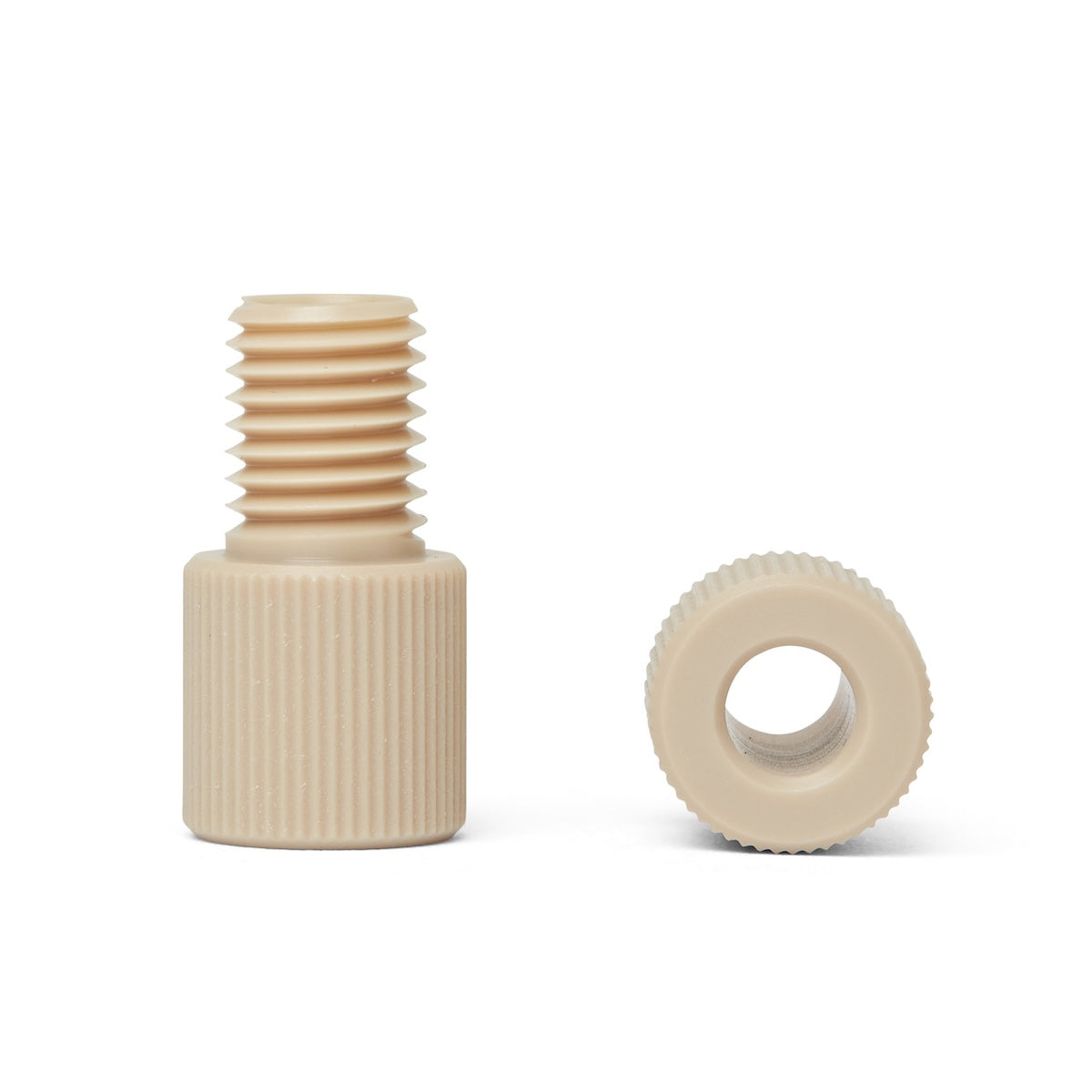

HPLC PEEK Flangeless Nuts with a flat bottom configuration are precision fluid handling components designed for High-Performance Liquid Chromatography (HPLC) systems that require reliable, leak-free connections and superior chemical resistance. Manufactured from advanced Polyether Ether Ketone (PEEK), these nuts provide outstanding compatibility with a wide range of solvents while delivering excellent mechanical strength and dimensional stability in demanding analytical environments.
Designed with a 5/16-24 UNF thread for use with 3/16" OD tubing, these flangeless nuts provide reliable sealing without the need for flared tubing ends, simplifying installation and maintenance. The flat bottom design ensures consistent compression and secure tubing retention, making them ideal for analytical and laboratory applications where system integrity and contamination control are critical.
PEEK flangeless nuts are widely used in HPLC and UHPLC systems, chromatography equipment, laboratory instrumentation, and fluid handling assemblies where metal fittings may introduce corrosion or sample contamination.
Available for chromatography, laboratory, and precision fluid handling systems.
Material: PEEK 450G (Polyether Ether Ketone)
Maximum Temperature: 500°F
Flammability: UL94 V-0
Tensile Strength: 97MPa
Return components within 90 days for a full refund. Please see our returns terms and conditions for further information.
Properties and applications
Every project is unique — so why settle for standard parts?
Our custom manufacturing service delivers precision-engineered components tailored to your exact requirements. With low minimum order quantities and scalable production capacity, we support everything from prototypes to high-volume manufacturing.
With extensive material knowledge, consistent product quality, and high volume capability, we support manufacturers with polymer components they can rely on.
Get in touch to discuss your project:
